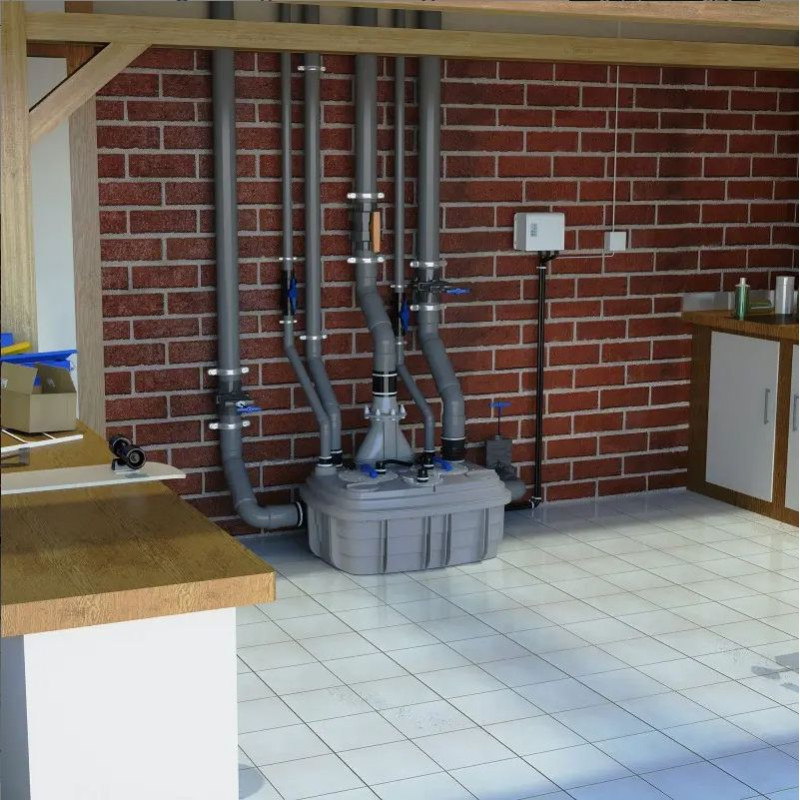

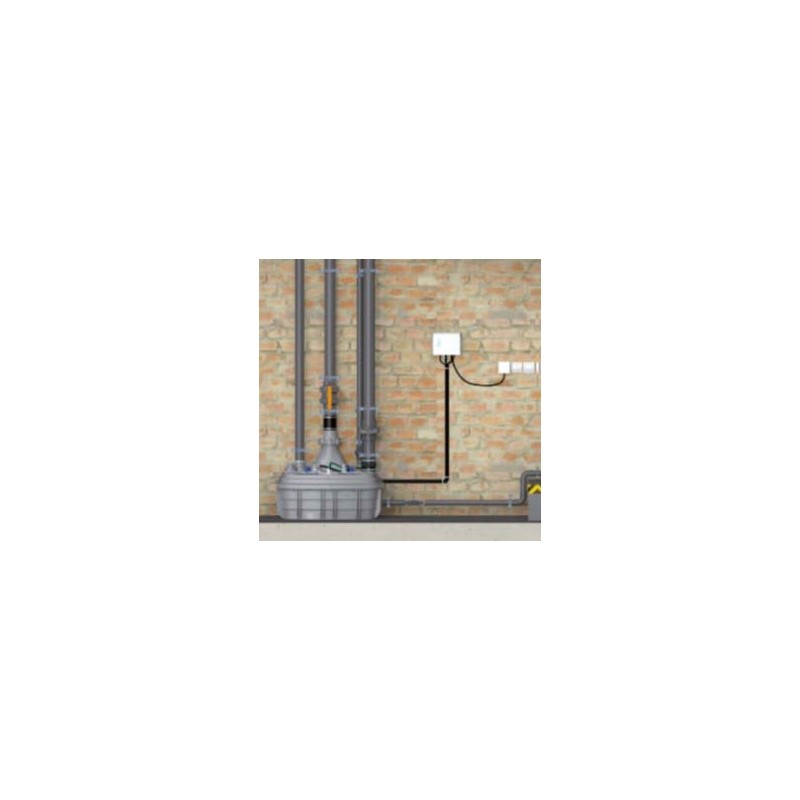

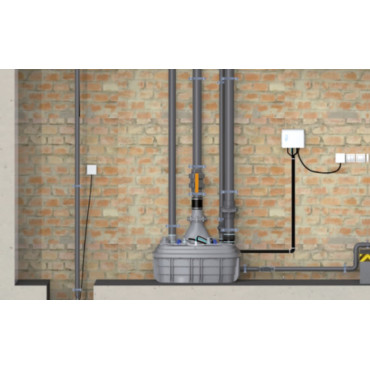

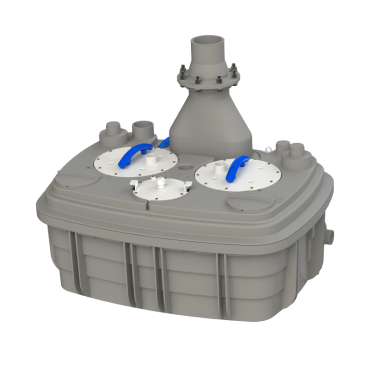

The Sanicubic 2 VX is our largest lifting station for commercial use handling up to 40m³/hour of waste water via two 2kW pumps. It is easy to install as it stands on the floor and does not need to be positioned below ground.
The Sanicubic 2 VX is our largest lifting station for commercial use. It can take waste from toilets, basins, bath, shower, bidet, washing machine, dishwasher and sink. It is easy to install as there is no need to excavate as it does not need to be positioned below ground. The Sanicubic 2 VX has a large bore vortex pump which can pump waste...
Voir plus
Sanicubic 2 VX S | Sanicubic 2 VX T | ||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Order type | Classic control box | Classic control box | |||||||||||||||||||||||||||||||||||||||||||||||
Materials | |||||||||||||||||||||||||||||||||||||||||||||||||
Tank | PP GF | PP GF | |||||||||||||||||||||||||||||||||||||||||||||||
Pump body | PA 12 GF | PA 12 GF | |||||||||||||||||||||||||||||||||||||||||||||||
Motor body | PA 12 GF | PA 12 GF | |||||||||||||||||||||||||||||||||||||||||||||||
Wheel | PPO GF | PPA GF | |||||||||||||||||||||||||||||||||||||||||||||||
Electrical characteristics | |||||||||||||||||||||||||||||||||||||||||||||||||
Voltage | 230 V | 230 V | |||||||||||||||||||||||||||||||||||||||||||||||
Frequency | 50-60 Hz | 50-60 Hz | |||||||||||||||||||||||||||||||||||||||||||||||
Power consumption P1 | 2000 W | 3500 W | |||||||||||||||||||||||||||||||||||||||||||||||
Power output P2 | 1400 W | 2800 W | |||||||||||||||||||||||||||||||||||||||||||||||
Mode of operation | S3 30% | S3 15% | |||||||||||||||||||||||||||||||||||||||||||||||
Protection index | IP68 | IP68 | |||||||||||||||||||||||||||||||||||||||||||||||
Hydraulics | |||||||||||||||||||||||||||||||||||||||||||||||||
HMT max. | 13 m | 16 m | |||||||||||||||||||||||||||||||||||||||||||||||
Max. flow rate | 40 m³/h | 55 m³/h | |||||||||||||||||||||||||||||||||||||||||||||||
Ext. inlets diameter | 40, 50, 100, 110, 125 mm | 40, 50, 100, 110 mm | |||||||||||||||||||||||||||||||||||||||||||||||
Ext. discharge diameter | 90/110 mm | 90/110 mm | |||||||||||||||||||||||||||||||||||||||||||||||
Ext. ventilation diameter | 75 mm | 75 mm | |||||||||||||||||||||||||||||||||||||||||||||||
Total volume | 120 L | 120 L | |||||||||||||||||||||||||||||||||||||||||||||||
Useful volume | 26 L | 26 L | |||||||||||||||||||||||||||||||||||||||||||||||
ON/OFF level | 165/95 mm | 165/95 mm | |||||||||||||||||||||||||||||||||||||||||||||||
Alarm level | 235 mm | 235 mm | |||||||||||||||||||||||||||||||||||||||||||||||
Free passage | 50 mm | 50 mm | |||||||||||||||||||||||||||||||||||||||||||||||
Max. permissible temperature of the pumped liquid | 70°C (5 mins) | 70°C (5 mins) | |||||||||||||||||||||||||||||||||||||||||||||||
Wheel type | Vortex wheel | Vortex wheel | |||||||||||||||||||||||||||||||||||||||||||||||
Switching type | Pneumatic | Pneumatic | |||||||||||||||||||||||||||||||||||||||||||||||
Identification & Logistics | |||||||||||||||||||||||||||||||||||||||||||||||||
Gross weight | 101 kg | 102 kg | |||||||||||||||||||||||||||||||||||||||||||||||
EAN code | 3308815063140 | 3308815074689 | |||||||||||||||||||||||||||||||||||||||||||||||
Factory code | CUBIC2XLVX | CUBIC2XLVXTRI |
