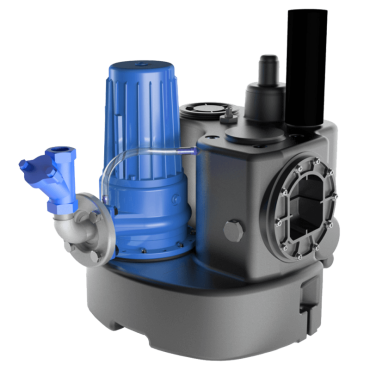

Sanicubic 1 GR

Sanicubic 1 GR

Sewage Water Lifting Pump for Multiple Fixtures

The Sanicubic 1 GR is an IP68 rated sewage water lifting pump that can take wastewater from multiple kitchen and bathroom fixtures. The pump can lift wastewater up to 39 m vertically, making it ideal for small commercial environments or residential homes with large usage.

  • Wheel Dilacrator System
  • Available in single-phase or three-phase
  • 5 versions: from 20 to 39 m of lifting height
  • Max. flow rate: 17 m³/h
  • IP68 rating
€0.00

Your documents - Particular

The Sanicubic 1 GR is a sewage water lifting pump that comes with a certified IP68 motor and is equipped with a high-performance grinding wheel system. When looking for a lifting station for retail stores or big bungalows, the Sanicubic 1 GR is available in 5 versions that support 4 high level...

Voir plus

Sanicubic 1 GR Datasheet

Sanicubic 1 GR SE71.1 S Sanicubic 1 GR SE71.1 T Sanicubic 1 GR SE71.2 T Sanicubic 1 GR SE71.3 T Sanicubic 1 GR SE71.4 T
Order type Control Box ZPS 1 Control Box ZPS 1 Control Box ZPS 1 Control Box ZPS 1 Control Box ZPS 1
Materials
Tank PE LD PE LD PE LD PE LD PE LD
Pump body GG-20 GG-20 GG-20 GG-20 GG-20
Motor body GG-20 GG-20 GG-20 GG-20 GG-20
Wheel GG-20 GG-20 GG-20 GG-20 GG-20
Electrical characteristics
Voltage 230 V 400 V 400 V 400 V 400 V
Frequency 50-60 Hz 50-60 Hz 50-60 Hz 50-60 Hz 50-60 Hz
Power consumption P1 2200 W 2100 W 2100 W 3900 W 3900 W
Power output P2 1700 W 1700 W 1700 W 3200 W 3200 W
Mode of operation S3 25% S3 25% S3 25% S3 25% S3 25%
Protection index IP68 IP68 IP68 IP68 IP68
Hydraulics
HMT max. 22 m 22 m 25 m 35 m 39 m
Max. flow rate 17 m³/h 17 m³/h 17 m³/h 17 m³/h 17 m³/h
Ext. ventilation diameter 75 mm 75 mm 75 mm 75 mm 75 mm
DN inlets diameter 50, 100 50, 100 50, 100 50, 100 50, 100
DN discharge diameter 50 50 50 50 50
Total volume 55 L 55 L 55 L 55 L 55 L
ON/OFF level 140-250/30 mm 140-250/30 mm 140-250/30 mm 140-250/30 mm 140-250/30 mm
Alarm level 180-290 mm 180-290 mm 180-290 mm 180-290 mm 180-290 mm
Max. permissible temperature of the pumped liquid 55°C (5 mins) 55°C (5 mins) 55°C (5 mins) 55°C (5 mins) 55°C (5 mins)
Wheel type Expanding wheel Expanding wheel Expanding wheel Expanding wheel Expanding wheel
Switching type Pneumatic Pneumatic Pneumatic Pneumatic Pneumatic
Identification & Logistics
Gross weight 64 kg 64 kg 64 kg 68 kg 68 kg
EAN code 3308815079110 3308815079127 3308815079134 3308815079141 3308815079158
Factory code CUBIC1GRSE71-1S CUBIC1GRSE71-1T CUBIC1GRSE71-2T CUBIC1GRSE71-3T CUBIC1GRSE71-4T
