Sanicubic 2 SC

Sanicubic 2 SC

Wastewater Lifting Pump for Commercial Applications

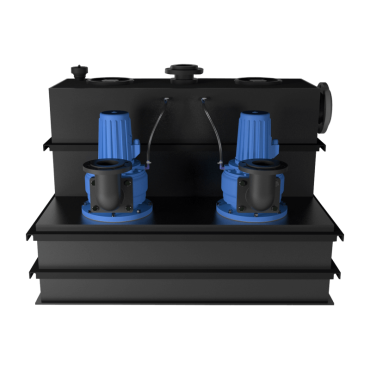

The SANICUBIC 2 SC is a two-motor wastewater lifting pump equipped with a single-channel impeller. Designed for commercial applications, it can lift wastewater from public buildings or shopping centres. This lifting station is available in 4 versions. It comes with a pneumatic remote-control box, which includes an audible and visual alarm.

  • Single-channel cutting blade
  • Available in three phases
  • 4 versions: from 125 to 175 m3/h discharge
  • Tank volume: 1000 litres
  • IP68 rating
€0.00

Your documents - Particular

The Sanicubic 2 SC is a wastewater lifting pump that comes with 2 IP68 certified motors, each with a single channel high performance cutting blade. The Sanicubic 2 SC wastewater lift pump is currently available in 4 different versions for 4 high volume lifting performances. This Sanicubic 2 SC pump...

Voir plus

Sanicubic 2 SC Datasheet

Sanicubic 2 SC3.0 T Sanicubic 2 SC4.0 T Sanicubic 2 SC5.5 T Sanicubic 2 SC7.5 T
Order type Control Box ZPS 2 Control Box ZPS 2 Control Box ZPS 2 Control Box system PS2
Materials
Tank PE HD PE HD PE HD PE HD
Pump body GG-20 GG-20 GG-20 GG-20
Motor body GG-20 GG-20 GG-20 GG-20
Wheel GG-20 GG-20 GG-20 GG-20
Electrical characteristics
Voltage 400 V 400 V 400 V 400 V
Frequency 50-60 Hz 50-60 Hz 50-60 Hz 50-60 Hz
Power consumption P1 4000 W 5500 W 6300 W 8700 W
Power output P2 3000 W 4000 W 5500 W 7500 W
Mode of operation S3 25% S3 25% S3 25% S3 25%
Protection index IP68 IP68 IP68 IP68
Hydraulics
HMT max. 10 m 13 m 18 m 22 m
Max. flow rate 120 m³/h 140 m³/h 160 m³/h 165 m³/h
DN inlets diameter 150 150 150 150
DN discharge diameter 100 100 100 100
DN ventilation diameter 100 100 100 100
Total volume 1000 L 1000 L 1000 L 1000 L
Useful volume 500 L 500 L 500 L 500 L
Free passage 80 mm 80 mm 80 mm 80 mm
Max. permissible temperature of the pumped liquid 55°C (5 mins) 55°C (5 mins) 55°C (5 mins) 55°C (5 mins)
Wheel type Single-channel wheel Single-channel wheel Single-channel wheel Single-channel wheel
Switching type Pneumatic Pneumatic Pneumatic Pneumatic
Identification & Logistics
Gross weight 370 kg 385 kg 400 kg 425 kg
EAN code 3308815079073 3308815079080 3308815079097 3308815079103
Factory code CUBIC2SC3-0T CUBIC2SC4-0T CUBIC2SC5-5T CUBIC2SC7-5T
