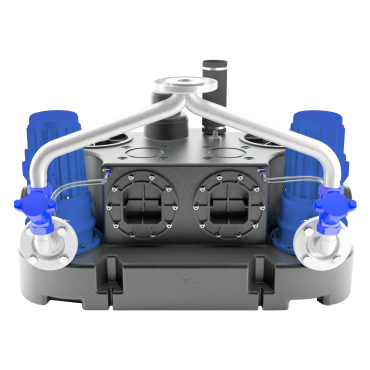

Sanicubic 2 GR

Sewage Grinder Lifting Station

The Sanicubic 2 GR is a heavy-duty sewage grinder lifting station ideal for small commercial premises and large domestic dwellings such as villas, pool houses etc. This station is equipped with two pumps with the Pro X K3 dilaceration system, which are activated simultaneously in case of a large supply.

  • Two motors with high-performance grinder system
  • Available in three phases
  • 4 versions: from 20 to 39 m of lift
  • Discharge in 50 mm pipe
  • Large tank volume of 150 L
  • Max flow rate of 17 m3/h
€0.00

Your documents - Particular

The Sanicubic 2 GR is an IP68-certified commercial sewage lifting station that comes equipped with two grinder pumps. The Sanicubic 2 GR sewage grinder lifting station is available in 4 different versions for 4 high-level lifting performances. With its 5 inlets, Sanicubic 2 GR can collect all wastewater, even in the...

Voir plus

Sanicubic 2 GR Datasheet

Sanicubic 2 GR SE71.1 T Sanicubic 2 GR SE71.2 T Sanicubic 2 GR SE71.3 T Sanicubic 2 GR SE71.4 T
Order type Control Box ZPS 2 Control Box ZPS 2 Control Box ZPS 2 Control Box ZPS 2
Materials
Tank PE LD PE LD PE LD PE LD
Pump body GG-20 GG-20 GG-20 GG-20
Motor body GG-20 GG-20 GG-20 GG-20
Wheel GG-20 GG-20 GG-20 GG-20
Electrical characteristics
Voltage 400 V 400 V 400 V 400 V
Frequency 50-60 Hz 50-60 Hz 50-60 Hz 50-60 Hz
Power consumption P1 2100 W 2100 W 3900 W 3900 W
Power output P2 1700 W 1700 W 3200 W 3200 W
Mode of operation S3 25% S3 25% S3 25% S3 25%
Protection index IP68 IP68 IP68 IP68
Hydraulics
HMT max. 22 m 25 m 35 m 39 m
Max. flow rate 17 m³/h 17 m³/h 17 m³/h 17 m³/h
Ext. ventilation diameter 75 mm 75 mm 75 mm 75 mm
DN inlets diameter 100, 150 100, 150 100, 150 100, 150
DN discharge diameter 50 50 50 50
Total volume 150 L 150 L 150 L 150 L
ON/OFF level 140-250/30 mm 140-250/30 mm 140-250/30 mm 140-250/30 mm
Alarm level 180-290 mm 180-290 mm 180-290 mm 180-290 mm
Max. permissible temperature of the pumped liquid 55°C (5 mins) 55°C (5 mins) 55°C (5 mins) 55°C (5 mins)
Wheel type Expanding wheel Expanding wheel Expanding wheel Expanding wheel
Switching type Pneumatic Pneumatic Pneumatic Pneumatic
Identification & Logistics
Gross weight 137 kg 137 kg 144 kg 144 kg
EAN code 3308815079165 3308815079172 3308815079189 3308815079196
Factory code CUBIC2GRSE71-1T CUBIC2GRSE71-2T CUBIC2GRSE71-3T CUBIC2GRSE71-4T
