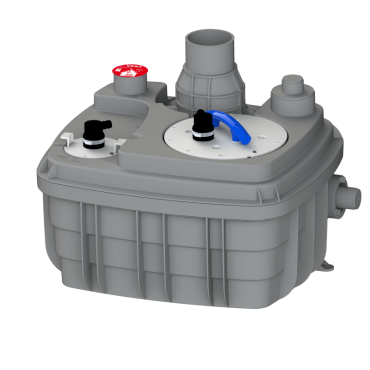

Sanicubic 1 VX

Sanicubic 1 VX

Wastewater Drainage Station for Residential and Commercial Spaces

Sanicubic 1 VX is a wastewater drainage station that can be easily installed in individual houses and in commercial environments with light usage.

  • Vortex grinder pump
  • Discharge height: 13 m
  • Discharge pipe size: 90/110 mm
  • Max. flow rate: 40 m3/hr
  • IP68 rating
€0.00

Your documents - Particular

The Sanicubic 1 VX wastewater removal pump is designed for light commercial use, like in small restaurants and single-family houses. This wastewater drainage station is powerful and can easily pump discharged wastewater from toilets, basins, baths, showers, bidets, washing...

Voir plus

Sanicubic 1 VX Datasheet

Sanicubic 1 VX
Order type Classic control box
Materials
Tank PP GF
Pump body PA 12 GF
Motor body PA 12 GF
Wheel PPO GF
Electrical characteristics
Voltage 230 V
Frequency 50-60 Hz
Power consumption P1 2000 W
Power output P2 1400 W
Mode of operation S3 15%
Protection index IP68
Hydraulics
HMT max. 13 m
Max. flow rate 40 m³/h
Ext. inlets diameter 40, 50, 100, 110, 125 mm
Ext. discharge diameter 110 mm
Ext. ventilation diameter 75 mm
Total volume 60 L
Useful volume 21 L
ON/OFF level 165/95 mm
Alarm level 235 mm
Free passage 50 mm
Max. permissible temperature of the pumped liquid 70°C (5 mins)
Wheel type Vortex wheel
Switching type Pneumatic
Identification & Logistics
Gross weight 30 kg
EAN code 3308815077611
Factory code CUBIC1XLVX
Sanicubic 1 VX

Sanicubic 1 VX
