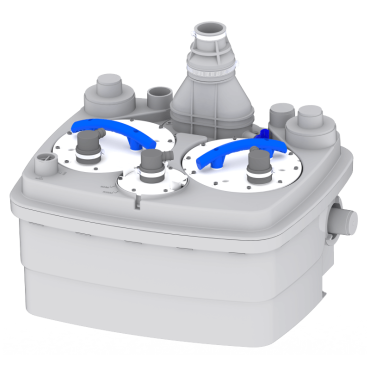

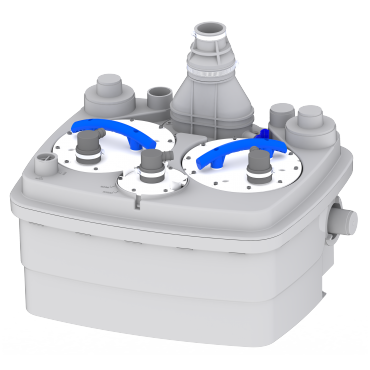

The Sanicubic 2 Classic contains two separate, load balanced pumps with high performance macerating systems and will operate alternately. In the event of inflow overload, both motors run at the same time, or in the unlikely event that one motor fails, the other one will take over.
The Sanicubic 2 Classic contains two separate load-balanced pumps with high-performance grinder systems that operate alternately. In the event of inflow overload, both motors run simultaneously, or in the unlikely event that one motor fails, the other one will take over.
Voir plus
Sanicubic 2 Classic | |||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Order type | Classic control box | ||||||||||||||||||||||||||||||||||||||||||||||||
Materials | |||||||||||||||||||||||||||||||||||||||||||||||||
Tank | PP | ||||||||||||||||||||||||||||||||||||||||||||||||
Pump body | PA 12 GF | ||||||||||||||||||||||||||||||||||||||||||||||||
Motor body | PA 12 GF | ||||||||||||||||||||||||||||||||||||||||||||||||
Wheel | PP GF | ||||||||||||||||||||||||||||||||||||||||||||||||
Electrical characteristics | |||||||||||||||||||||||||||||||||||||||||||||||||
Voltage | 230 V | ||||||||||||||||||||||||||||||||||||||||||||||||
Frequency | 50-60 Hz | ||||||||||||||||||||||||||||||||||||||||||||||||
Power consumption P1 | 1500 W | ||||||||||||||||||||||||||||||||||||||||||||||||
Power output P2 | 1050 W | ||||||||||||||||||||||||||||||||||||||||||||||||
Mode of operation | S3 30% | ||||||||||||||||||||||||||||||||||||||||||||||||
Protection index | IP68 | ||||||||||||||||||||||||||||||||||||||||||||||||
Hydraulics | |||||||||||||||||||||||||||||||||||||||||||||||||
HMT max. | 13 m | ||||||||||||||||||||||||||||||||||||||||||||||||
Max. flow rate | 15 m³/h | ||||||||||||||||||||||||||||||||||||||||||||||||

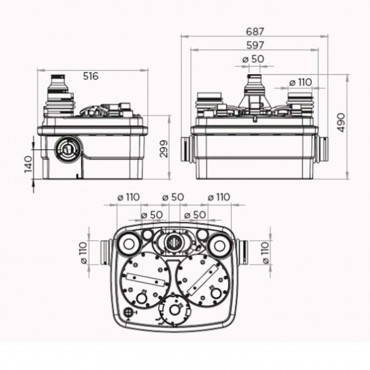

Ext. inlets diameter | 40, 50, 100, 110 mm | ||||||||||||||||||||||||||||||||||||||||||||||||
Ext. discharge diameter | 50 mm | ||||||||||||||||||||||||||||||||||||||||||||||||
Ext. ventilation diameter | 50 mm | ||||||||||||||||||||||||||||||||||||||||||||||||
Total volume | 45 L | ||||||||||||||||||||||||||||||||||||||||||||||||
Useful volume | 17.5 L | ||||||||||||||||||||||||||||||||||||||||||||||||
ON/OFF level | 140/70 mm | ||||||||||||||||||||||||||||||||||||||||||||||||
Alarm level | 210 mm | ||||||||||||||||||||||||||||||||||||||||||||||||
Max. permissible temperature of the pumped liquid | 70°C (5 mins) | ||||||||||||||||||||||||||||||||||||||||||||||||
Wheel type | Expanding wheel | ||||||||||||||||||||||||||||||||||||||||||||||||
Switching type | Pneumatic | ||||||||||||||||||||||||||||||||||||||||||||||||
Identification & Logistics | |||||||||||||||||||||||||||||||||||||||||||||||||
Gross weight | 35 kg | ||||||||||||||||||||||||||||||||||||||||||||||||
EAN code | 3308815074443 | ||||||||||||||||||||||||||||||||||||||||||||||||
Factory code | R4LCIP68NM |
