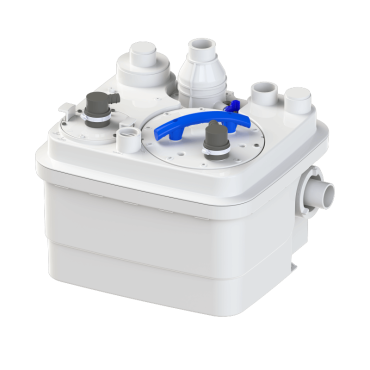

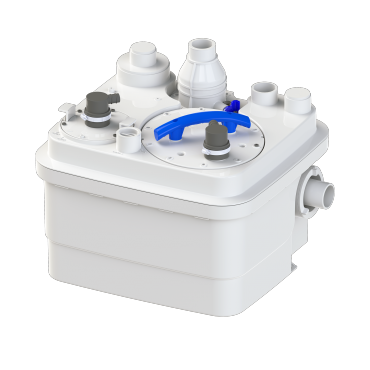

The Sanicubic 1 WP is a robust macerator pump that has been designed for the discharge of waste from up to two WCs plus multiple grey water producing appliances in busy business environments or larger domestic situations.
The Sanicubic 1 WP is a robust lifting station designed to discharge waste from up to two WCs and multiple grey water-producing appliances. It is best suited for commercial environments or domestic situations.
Voir plus
Sanicubic 1 WP | |||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Order type | Classic control box | ||||||||||||||||||||||||||||||||||||||||||||||||
Materials | |||||||||||||||||||||||||||||||||||||||||||||||||
Tank | PP | ||||||||||||||||||||||||||||||||||||||||||||||||
Pump body | PA 12 GF | ||||||||||||||||||||||||||||||||||||||||||||||||
Motor body | PA 12 GF | ||||||||||||||||||||||||||||||||||||||||||||||||
Wheel | PP GF | ||||||||||||||||||||||||||||||||||||||||||||||||
Electrical characteristics | |||||||||||||||||||||||||||||||||||||||||||||||||
Voltage | 230 V | ||||||||||||||||||||||||||||||||||||||||||||||||
Frequency | 50-60 Hz | ||||||||||||||||||||||||||||||||||||||||||||||||
Power consumption P1 | 1500 W | ||||||||||||||||||||||||||||||||||||||||||||||||
Power output P2 | 1050 W | ||||||||||||||||||||||||||||||||||||||||||||||||
Mode of operation | S3 30% | ||||||||||||||||||||||||||||||||||||||||||||||||
Protection index | IP68 | ||||||||||||||||||||||||||||||||||||||||||||||||
Hydraulics | |||||||||||||||||||||||||||||||||||||||||||||||||
HMT max. | 13 m | ||||||||||||||||||||||||||||||||||||||||||||||||
Max. flow rate | 15 m³/h | ||||||||||||||||||||||||||||||||||||||||||||||||
Ext. inlets diameter | 40, 50, 100, 110 mm | ||||||||||||||||||||||||||||||||||||||||||||||||
Ext. discharge diameter | 50 mm | ||||||||||||||||||||||||||||||||||||||||||||||||
Ext. ventilation diameter | 50 mm | ||||||||||||||||||||||||||||||||||||||||||||||||
Total volume | 32 L | ||||||||||||||||||||||||||||||||||||||||||||||||
Useful volume | 10 L | ||||||||||||||||||||||||||||||||||||||||||||||||
ON/OFF level | 140/70 mm | ||||||||||||||||||||||||||||||||||||||||||||||||
Alarm level | 210 mm | ||||||||||||||||||||||||||||||||||||||||||||||||
Max. permissible temperature of the pumped liquid | 70°C (5 mins) | ||||||||||||||||||||||||||||||||||||||||||||||||
Wheel type | Expanding wheel | ||||||||||||||||||||||||||||||||||||||||||||||||
Switching type | Pneumatic | ||||||||||||||||||||||||||||||||||||||||||||||||
Identification & Logistics | |||||||||||||||||||||||||||||||||||||||||||||||||
Gross weight | 23 kg | ||||||||||||||||||||||||||||||||||||||||||||||||
EAN code | 3308815074436 | ||||||||||||||||||||||||||||||||||||||||||||||||
Factory code | CUBIC1IP68NM |
