Grey water lift station
  • Grey water lift station
  • Sanicom 1 pump

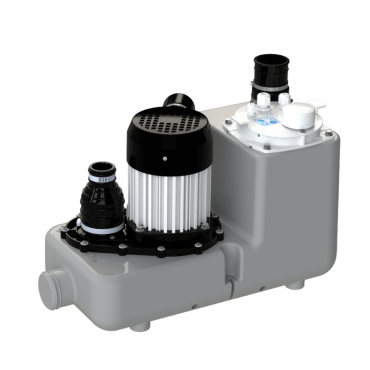

Sanicom 1

Grey Water Lift Station

Sanicom 1 is an automatic, powerful grey water lift station that is ideal for busy commercial environments like restaurants, hairdressing salons, and the catering industry. This lift station is suitable for multiple connections, including a basin, bath, shower, bidet, sink, dishwasher, and washing machine.

  • Ideal for commercial applications
  • Vertical discharge of 11 m
  • Tank volume of 14 L
  • Max flow rate of 12 m3/hr
  • 32 mm discharge pipe
€0.00

Your documents - Particular

The Sanicom 1’s lifting station for grey water is ideal for use in public or commercial environments. Sanicom 1 lifting station can handle wastewater from a shower, bath, sink, washing machine, dishwasher, and bidet. It has 2 inlets, and it discharges...

Voir plus

Sanicom 1 datasheet

Sanicom 1
Order type Built-in box
Materials
Pump body PE
Shaft PA 12 GF
Motor body Aluminium, PA 12 GF
Wheel PA 6 GF
Electrical characteristics
Voltage 230 V
Frequency 50-60 Hz
Power consumption P1 750 W
Power output P2 525 W
Protection index IPX4
Hydraulics
HMT max. 11 m
Max. flow rate 12 m³/h
Ext. inlets diameter 40 mm
Ext. discharge diameter 32 mm
Ext. ventilation diameter 50 mm
Total volume 14 L
Useful volume 5.7 L
ON/OFF level 135/50 mm
Alarm level 205 mm
Free passage 8 mm
Max. permissible temperature of the pumped liquid 90°C (5 mins)
Wheel type Multi-channel wheel
Switching type Pneumatic
Identification & Logistics
Gross weight 10 kg
EAN code 3308815082851
Factory code COM1002
